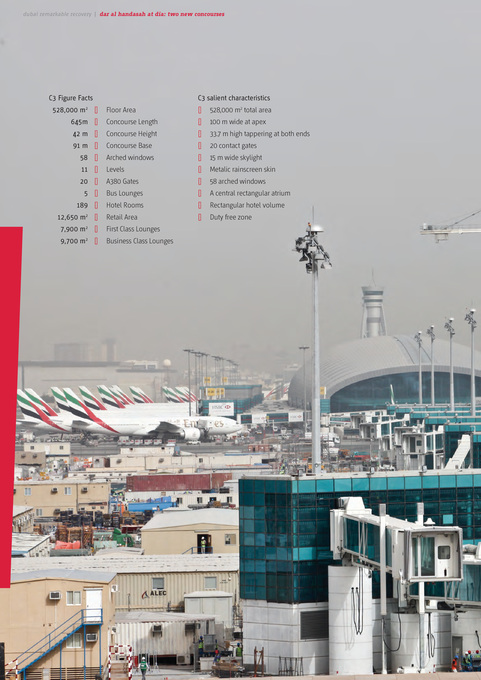

dubai remarkable recovery | dar al handasah at dia: two new concourses C3 Figure Facts 528,000 m2 [] 645m [] 42 m [] 91 m [] 58 [] 11 [] 20 [] 5 [] 189 [] 12,650 m2 [] 7,900 m 2 2 C3 salient characteristics Floor Area Concourse Length Concourse Height Concourse Base Arched windows Levels A380 Gates Bus Lounges Hotel Rooms Retail Area First Class Lounges Business Class Lounges [] [] [] [] [] [] [] [] [] [] 528,000 m2 total area 100 m wide at apex 33.7 m high tappering at both ends 20 contact gates 15 m wide skylight Metalic rainscreen skin 58 arched windows A central rectangular atrium Rectangular hotel volume Duty free zone [] [] 9,700 m 18
